Facial Recognition Access Control
Unrivalled face recognition access control performance by Fusion Matching

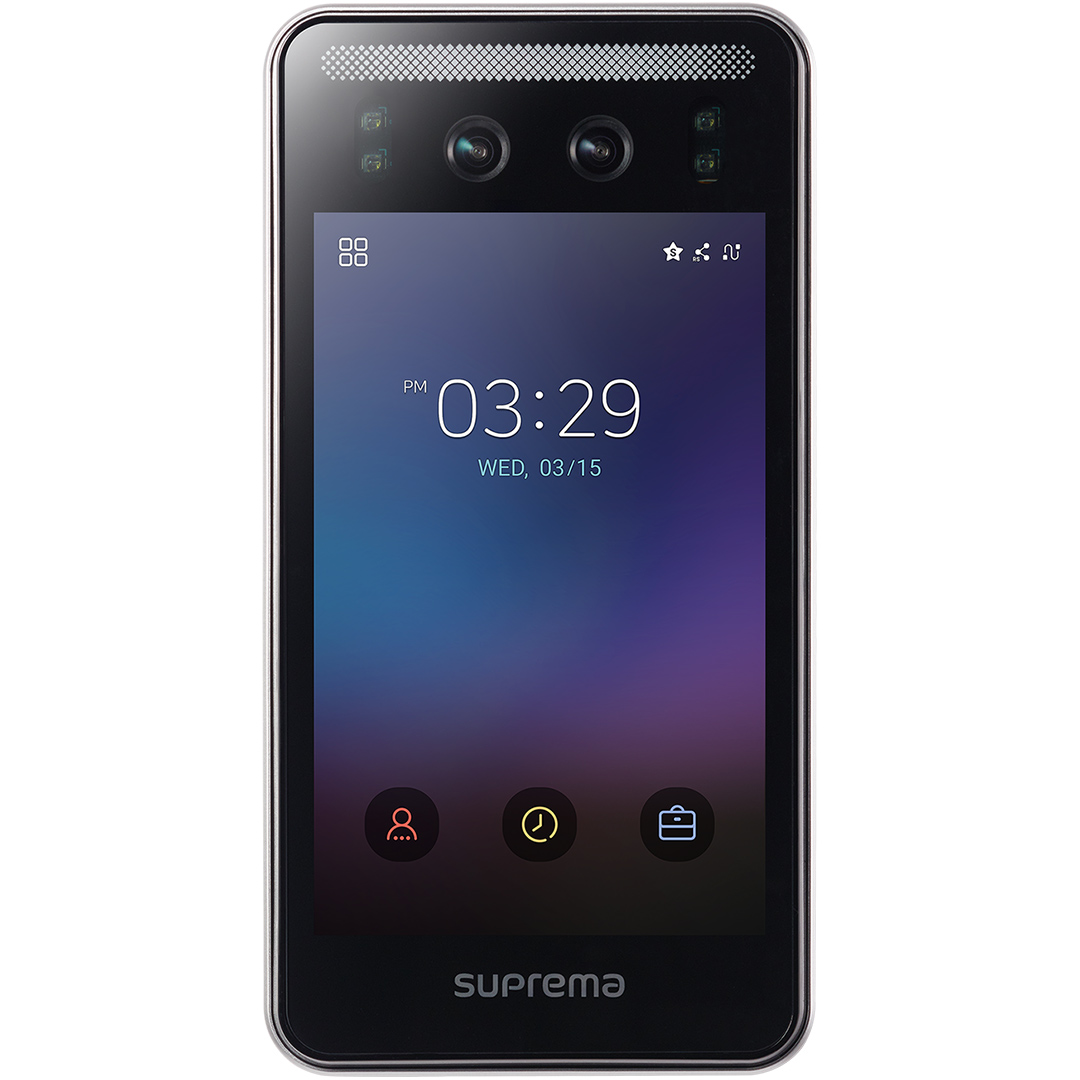

Face Station F2 boasts exceptional authentication accuracy achieved by the fusion matching of visual and infrared (IR) face recognitions.
- Suprema’s unique algorithm optimises IR and visual face recognition to produce the industry’s best face recognition and anti-spoofing performance
- Proven track record of authentication performance regardless of user ethnicity and face changes powered by deep learning
Best-in-class multimodal with various credentials
Facestation F2 offers a wide range of authentication options including face, mobile access, fingerprint and smart cards.
- Register up to 100,000 users for fingerprints authentication and 50,000 users for face authentication
- Supports dual-frequency access cards, NFC and BLE-based Mobile Access Cards
- Access-on-card allows authentication via biometric data stored in cards
Contactless solution for new standards of safety and hygiene
FaceStation F2 meets the needs of the post-pandemic world with remote and contactless solutions.

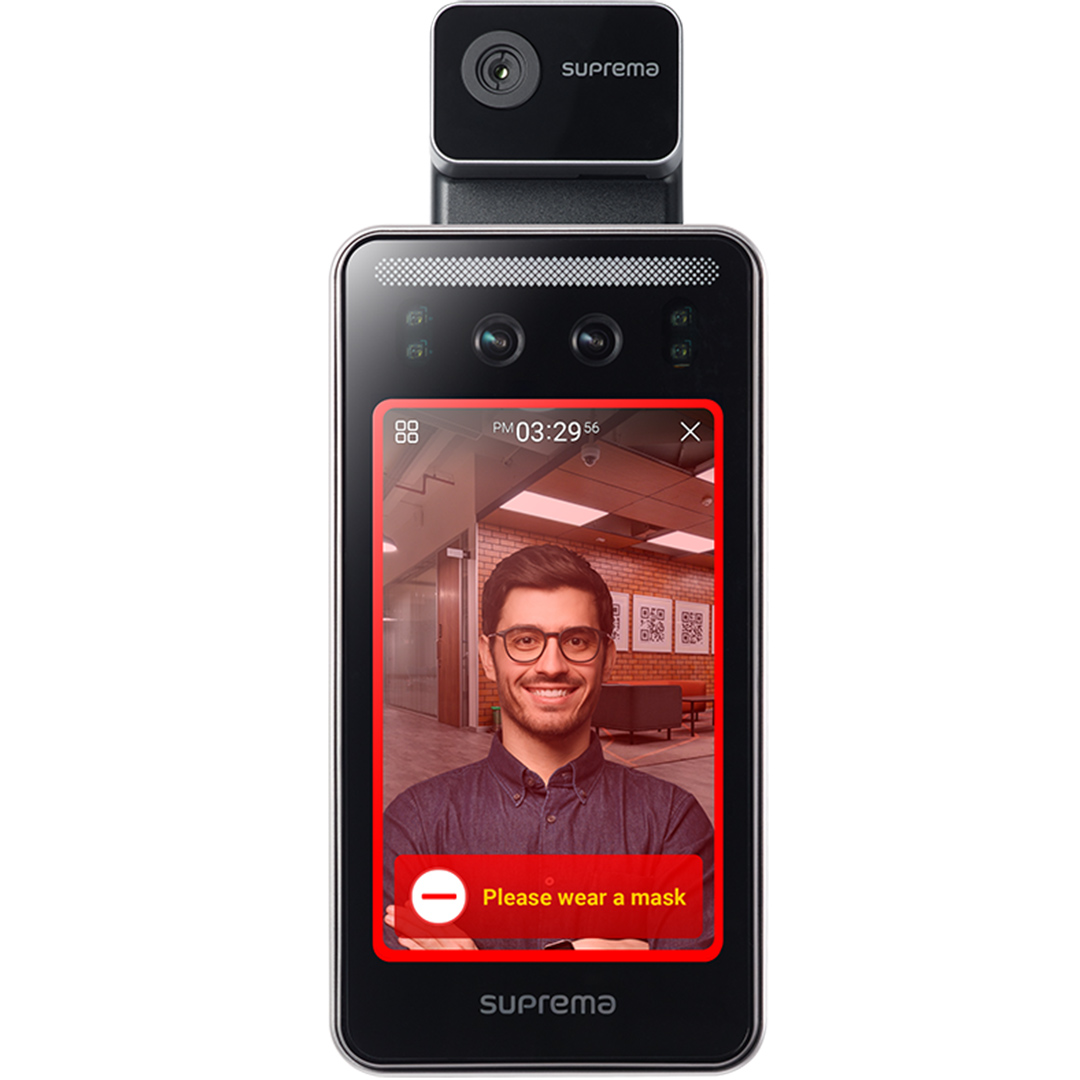

- Detects and limits access of users not wearing masks
- Face recognition of users wearing masks
- Remote user enrollment through profile photo uploads
- Combines with Suprema Thermal Camera to identify users with elevated skin temperature
Robust device security and data encryption
Facestation F2 is equipped with security measures to protect user data.
- Highest level of device security including secure booting process
- Encrypts all biometric credentials and personal information
- Built on Android and all its security enhancements
Download our facial recognition access control brochure
Want to know more?
Our comprehensive guide has you covered.
Click the button below to find out additional benefits of our terminals, how they can work with your current setup and a whole host more.
System configuration
Here is a design featuring a typical configuration of our system. However, alternations and customisations can be made based on your requirements.
Key features, performance and technical specifications
Key Features & Performance
CATEGORY
FEATURE
FSF2-DB
FSF2-AB
FSF1-ODB
CREDENTIAL
Biometric
Face
Face, Fingerprint
RF Option
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa
125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa
RF Read Range*
EM/MIFARE/DESFire : 50 mm (2”), FeliCa: 30 mm (1.2”) * RF read range will vary depending on the installation environment
Mobile
NFC, BLE
GENERAL
CPU
1.8 GHz Dual Core + 1.4 GHz Quad Core
Memory
16GB Flash + 2GB RAM
LCD Type
7” IPS color LCD
LCD Resolution
800 x 1280 pixels
Sound
16bit
Operating Temperature
-20°C ~ 50°C (-68°F ~ 122°F)
Operating Humidity
0% ~ 80%, non-condensing
Dimension (W x H x D)
119.8mm x 223mm x 23.5mm (4.7” x 8.8” x 0.9”)
119.8mm x 268.4mm x 49.7mm (4.7” x 10.6” x 1.9”
Weight
Device
585g
670g
Weight
Bracket (Including washer and bolt)
181g
181g
IP Rating
IP65
Certificates
CE, FCC, KC, RoHS, REACH, WEEE
FACE
Recognition Distance
0.5m ~ 1.3m (19.7" ~ 51.2")
Recognition Height
140cm ~ 190cm (55.1" ~ 74.8")
Matching Speed
Less than 0.5 sec
Live Face Detection (Anti-Spoofing)
Supported
FINGERPRINT
Image Dimension
N/A
300 x 400 pixels
Resolution
N/A
500 dpi
Template
N/A
SUPREMA / ISO19794-2, ANSI-378
Extractor / Matcher
N/A
MINEX certified and compliant
Sensor Certificates
N/A
FBI PIV and FBI Mobile ID FAP20
Live Fingerprint Detection
N/A
Supported (SW-based)
CAPACITY
Max. User (1:1) * Based on one face/fingerprint enrollment per user
100,000
Max. User (1:N) * Based on one face/fingerprint enrollment per user
Face: 50,000
Face: 50,000 Fingerprint: 100,000
Max. Text Logt
5,000,000
Max. Image Log
50,000
INTERFACE
Ethernet
10/100 Mbps, auto MDI/MDIX
RS-485
1ch Host or Slave (Selectable)
Wiegand
1ch Input or Output (Selectable)
TTL Input
2ch Inputs
Relay
1 Relay
USB
USB 2.0 (Host)
Tamper
Supported
POWER
Voltage: DC 12V ~ DC 24V Current: Max. 2.5 A * Use a 24V/2.5A adapter. Must follow the product manual when using a 12V adapter

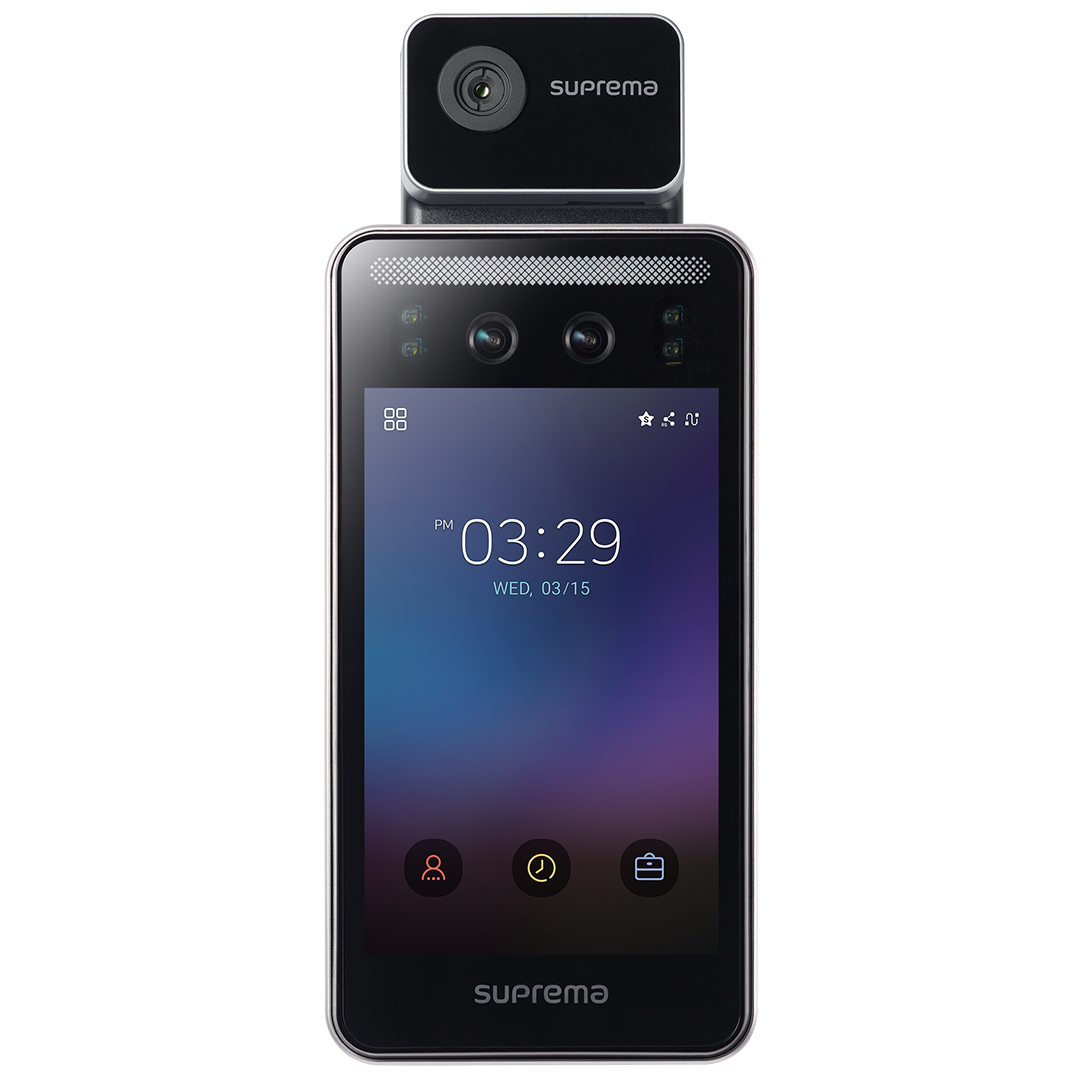

Temperature detection access control
The Facestation F2 Fusion Multimodal Access Control Terminal now come enhanced with temperature and thermal detection access control.
Whilst scanning an occupants face, the cameras are now able to utilise thermal sensors and indicate whether or not the occupant’s temperature is above or below a set number.
Should it be above the safety line, access is not granted and the user will be alerted. This is also then recorded on the WinAC.NET software.
This line of advanced facial recognition temperature detection technology ensures maximum safety and protection for your employees and visitors as part of our Covid Secure initiative.
Approved services and NSI Certificate of Approval for Access Control and CCTV Systems
For facial recognition access control terminals that offer high matching speeds, accuracy, and the level of security your business needs, enquire today.
