Facial Recognition Time and Attendance

facial recognition time and attendance

Facial recognition time and attendance terminals

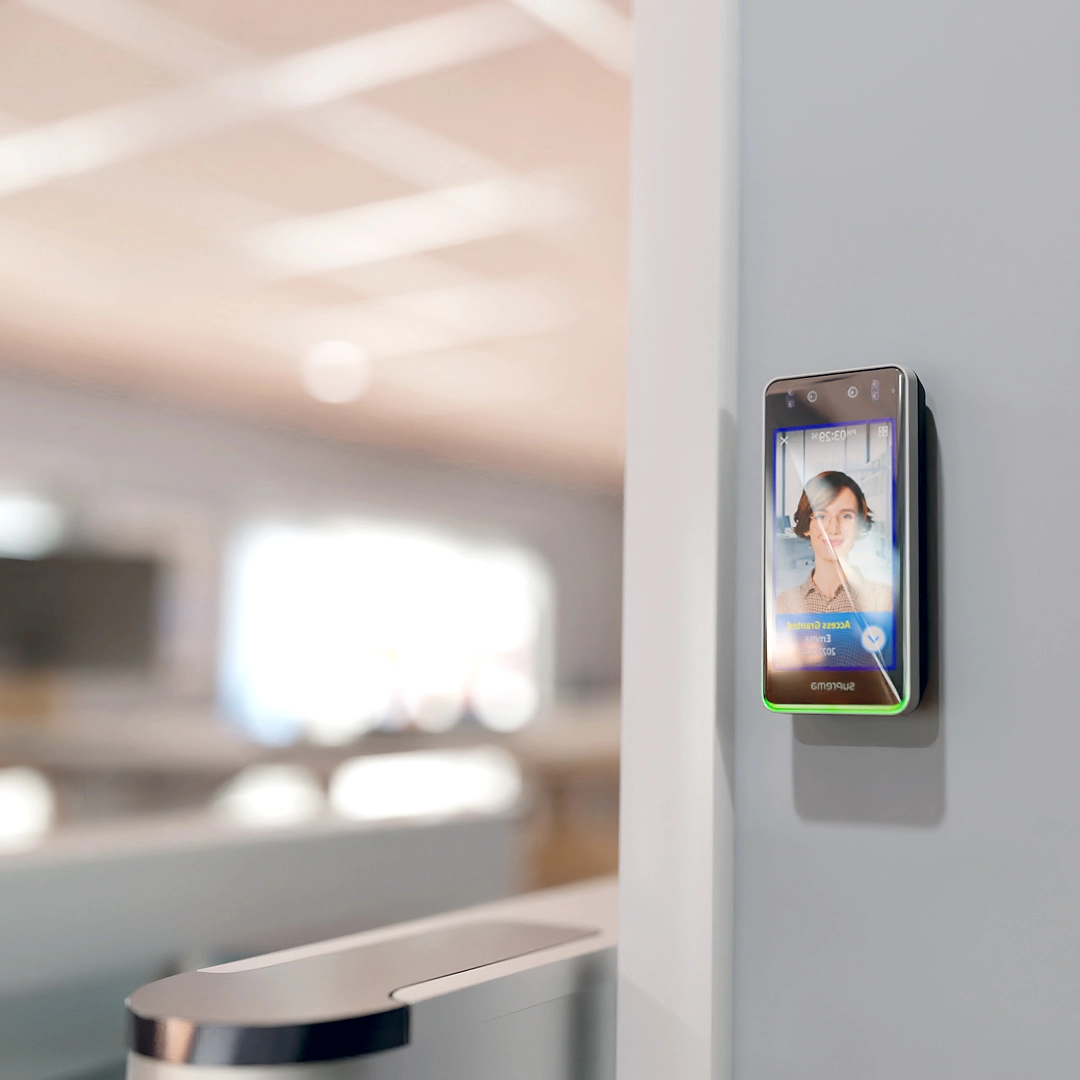

The Suprema FaceStation2 facial recognition time and attendance terminal is one of the world’s most compact face recognition stations designed for biometric time and attendance applications, offering very high matching speeds, accuracy and level of security.

Employee clocking-in stations for workforce management

FaceStation 2 can be very easily integrated into a Tensor time and attendance system, as it is fully supported by the latest versions of our WinTA.NET software suite. Following a fast and easy initial enrollment, the reader will allow employees to quickly clock in and out by simply looking into the unit.

The unit is very user-friendly, as its Android-based Intuitive GUI and wide touchscreen LCD significantly reduce the learning curve - it requires near-zero training for both users and system administrators.

Download our facial recognition time and attendance brochure

Contactless, fast and accurate

Integrating a facial recognition time and attendance terminal in your workforce management system or site entrance can have multiple benefits for your organisation. These include:

Contactless identification

This technology is both fast and accurate, instantly validating identity in order to help your organisation streamline workforce management and access control.

Enhanced security and accuracy

Using a facial recognition time and attendance terminal in your workforce management setup will provide an additional layer of security beyond keys, fobs and cards, ensuring the accuracy of clockings and preventing the issue of buddy-punching or any other similar attempts.

facial recognition time and attendance terminal

Temperature detection

The Suprema FaceStation2 terminals now support the addition of a thermal camera accessory (available separately) capable of delivering advanced temperature screening capabilities for a safe, Covid Secure working environment.

For more information on this very useful elevated body temperature detection solution, please click the button below:

Thermal Detection Terminals

Advantages unique to facial recognition time and attendance

Featuring patented optic engineering, the facial recognition time and attendance terminal achieves up to 25,000 lx of operating illuminance, which allows for uninterrupted face recognition regardless of all possible indoor lighting conditions as well as outdoor installations unless exposed to direct sunlight.

Equipped with a high-performance face recognition algorithm and range-leading 1.4GHz quad-core CPU, FaceStation 2 provides matching speeds of up to 3,000 matches/sec. Its massive memory capacity allows the FaceStation 2 to manage a very large number of users - it can accommodate up to 30,000 users, 50,000 face image logs and 5,000,000 text logs.

FaceStation2 includes the latest optical technology and a Live Face Detection (LFD) feature that helps it accurately distinguish the faces of users. It perfectly blocks spoofing using photographs or 3D printed masks.

Packed in a compact and ergonomically designed structure, the facial recognition time and attendance terminal supports a height range of 145cm to 210cm. With an optional tilt bracket, FaceStation 2 also accommodates users outside of that height range, such as wheelchair users and children, thereby providing exceptional performance and usability for diverse time and attendance applications of any size.

System configuration

A typical configuration of our system is featured below. However, alternations and customisations can be made based on your requirements.

facial recognition time and attendance terminal configuration

Key features, performance and technical specifications

Key Features & Performance

Facial Recognition

Matching Speed

1:3,000 match/sec

Group Matching

1:5,000 match/sec

User Capacity

30,000 users (1:1), 3,000 users (1:N)

Live Face Detection

Supported

Max. Face per User

5

Highest Operating Illuminance

Operating Illuminance

From 0lx to 25,000lx

Coverage

Covers complete darkness to all indoor lighting conditions

Enhanced Security

IR-Based Life Face Detection (LFD)

Prevent spoofing by printed images and LCDs

Enhanced Security

Built-in Android 5.0 Lollipop

Includes

High-quality image log

Cont.

Multi-RFID Card Reading

Supported Frequencies

LF (125kHz), HF (13.56MHz) dual-band

Supported Card Formats

MIFARE, MIFARE Plus, DESFire (EV1, EV2 and EV3), FeliCa

Supported Cards

Reads all card types with HID multiCLASS support

Ergonomics & User Convenience

Extended Height Range

145cm to 210cm

Optional Tilt Bracket

Accommodates wheelchaired persons and children

User Interface

Android-based GUI

Offers

Improved face enrollment procedure

Technical Specifications

Model Name

FS2-D

FS2-AWB

RFID

RF Option

125kHz EM and 13.56Mhz MIFARE, MIFARE Plus, DESFire (EV1, EV2 and EV3), FeliCa

125kHz EM, HID Prox and 13.56Mhz MIFARE, MIFARE Plus, DESFire (EV1, EV2 and EV3), FeliCa, iCLASS SE/SR/Seos

Mobile Card

NFC

NFC, BLE

Facial Recognition

Live Face Detection

Supported

Supported

Users (1:1): Based on One Face Enrollment per User

30,000

30,000

Users (1:N): Based on One Face Enrollment per User

3,000

3,000

Max. Face per User

5

5

Text Log

5,000,000

5,000,000

Image Log

50,000

50,000

Hardware Configuration

CPU

1.4 GHz quad-core

1.4 GHz quad-core

Memory

8GB flash, 1GB RAM

8GB flash, 1GB RAM

LCD Type

4” colour TFT LCD

4” colour TFT LCD

Sound

24-bit Voice DSP (echo cancellation)

24-bit Voice DSP (echo cancellation)

Operating Temperature

-20°C ~ 50°C

-20°C ~ 50°C

Storage Temperature

-40°C ~ 70°C

-40°C ~ 70°C

Operating Humidity

0% ~ 80%

0% ~ 80%

Storage Humidity

0% ~ 90%

0% ~ 90%

Weight

Device: 548g
Bracket: 74g

Device: 548g
Bracket: 74g

Dimension (W x H x D)

141mm x 164mm x 125mm

141mm x 164mm x 125mm

Tamper-Proof

Supported

Supported

Connectivity Interfaces

Wi-Fi

Not supported

Built-in, IEEE 802.11 b/g

Ethernet

10/100/1000 Mbps, auto MDI/MDI-X

10/100/1000 Mbps, auto MDI/MDI-X

RS-485

1ch host or slave (selectable)

1ch host or slave (selectable)

Wiegand

1ch input or output (selectable)

1ch input or output (selectable)

TTL Input

2ch inputs

2ch inputs

Relay

1 relay

1 relay

USB

USB 2.0 (Host)

USB 2.0 (Host)

SD Card

Not supported

Not supported

PoE

Not supported

Not supported

Intercom

Supported

Supported

Electrical

Power Supply

24V DC

24V DC

We manufacture, install and maintain industry-leading facial recognition time and attendance systems. Enquire about our biometric and contactless clocking stations today.
