Hand Scanner Terminals

Time, attendance and access control scanner for businesses

The HSCAN3000 Hand Scanner Terminal provides the accuracy and convenience of biometric technology.

In operations from coal mines to clean rooms, the system has proven to be a practical and precise solution. There are no cards to create, administer, carry or lose. The HSCAN3000 verifies employee identities in less than one second, based on the unique size of their hands.

HSCAN3000 clearly notifies each user of a match using red and green indicator lights. As no one can punch in or out for your employees, the system reduces time theft and improves payroll accuracy.

The HSCAN3000 Hand Scanner Terminal offers optional Ethernet connectivity and multiple memory upgrades to grow with your company’s needs. In addition, it also includes:

  • Edit-at-the-clock functions
  • Bell schedules
  • Door control
  • The ability to connect multiple units at a single site

When you want to cut time and attendance costs, do it by hand.

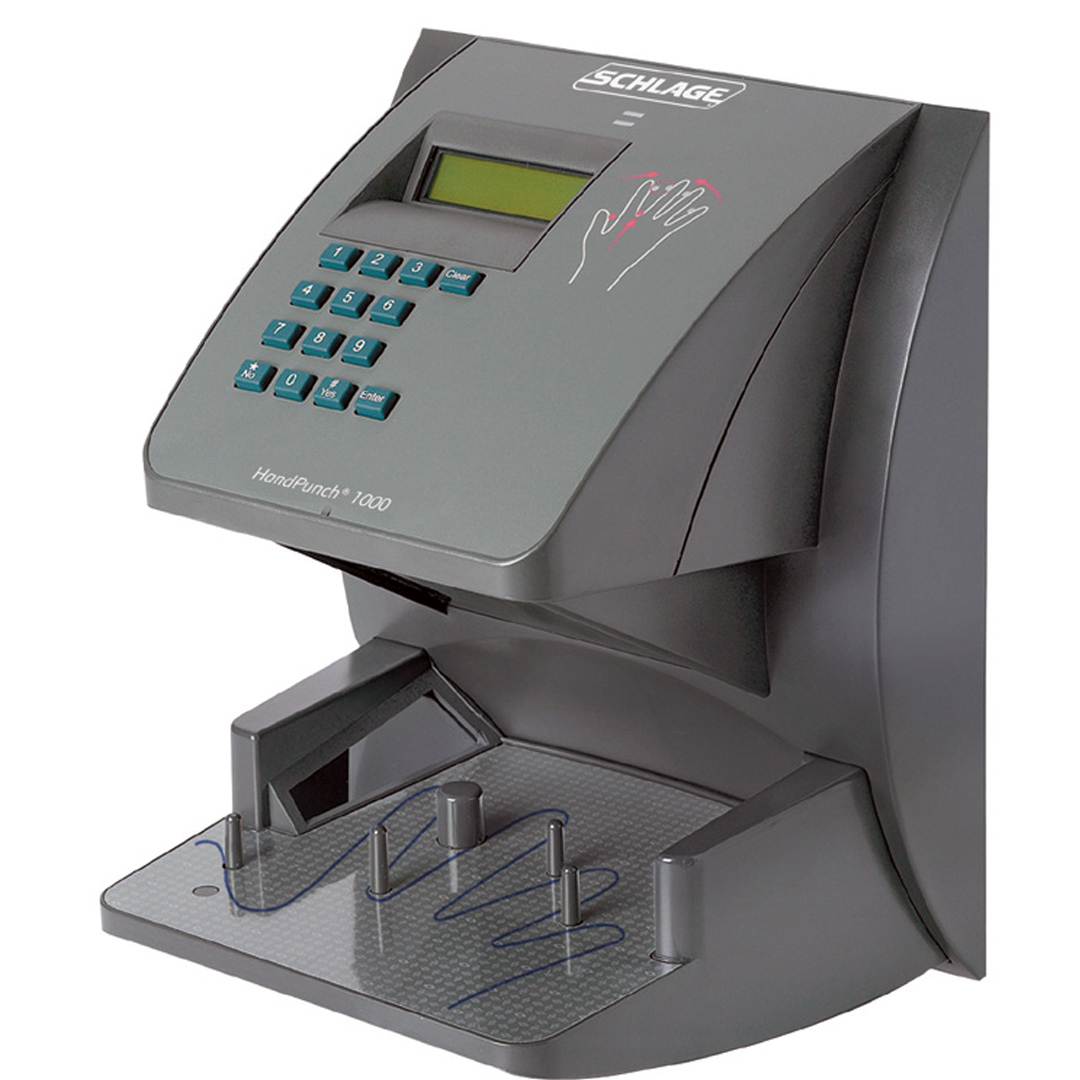

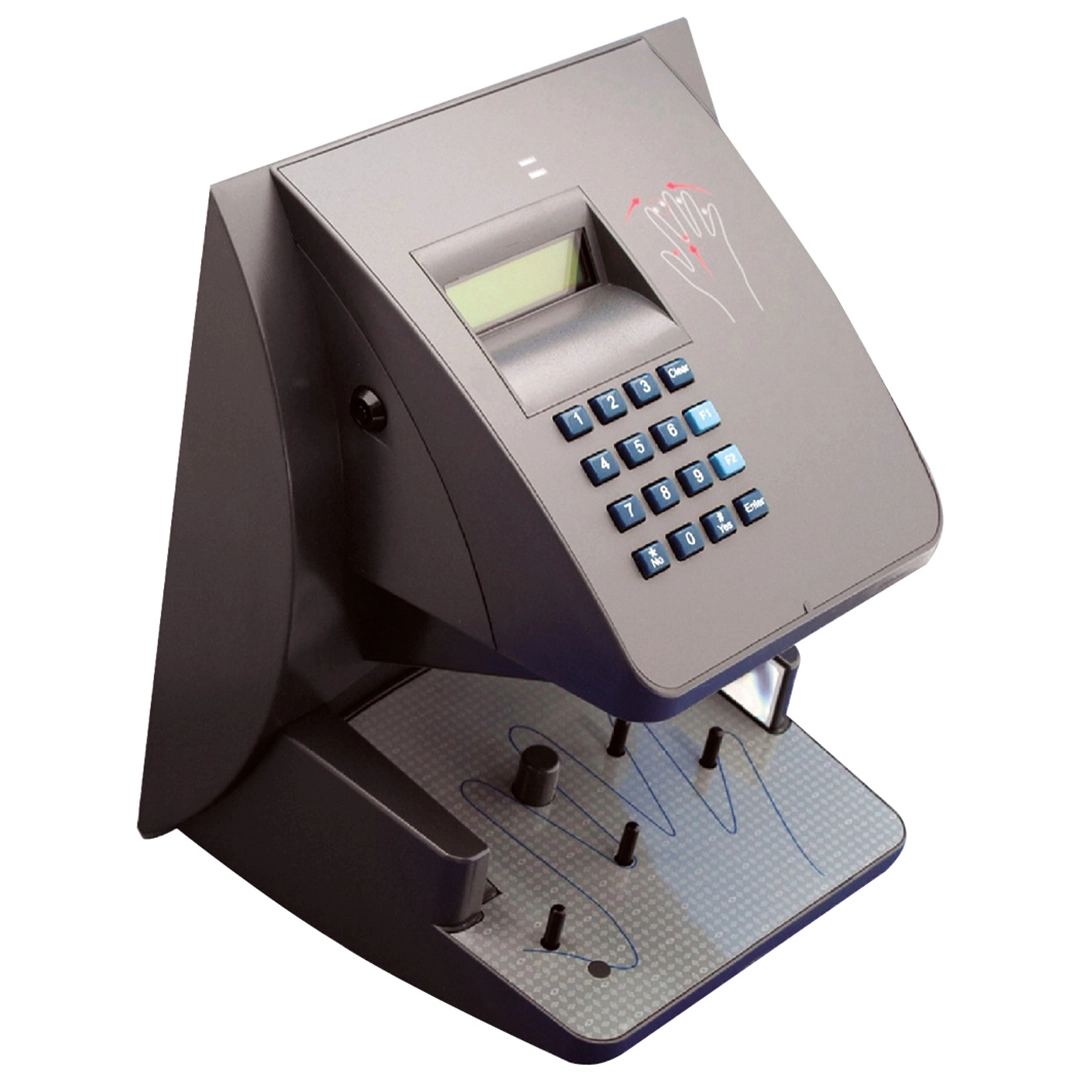

Hand scanner termimal

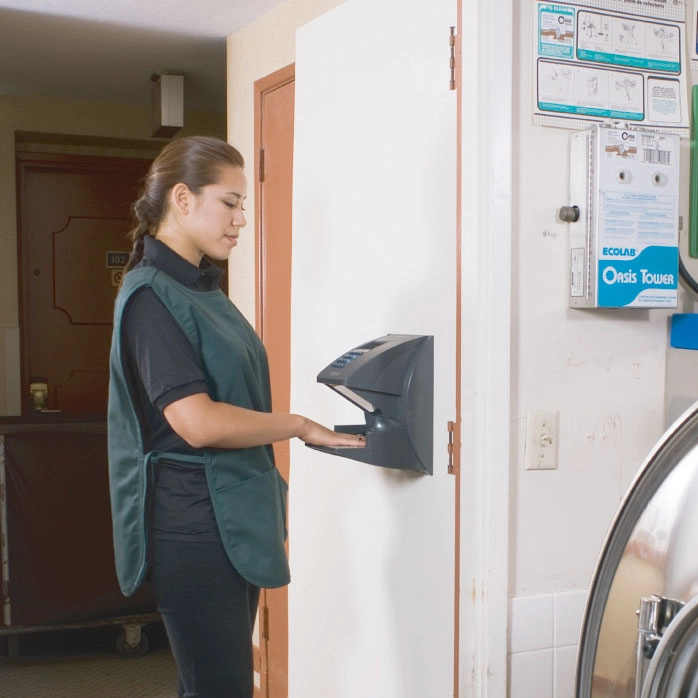

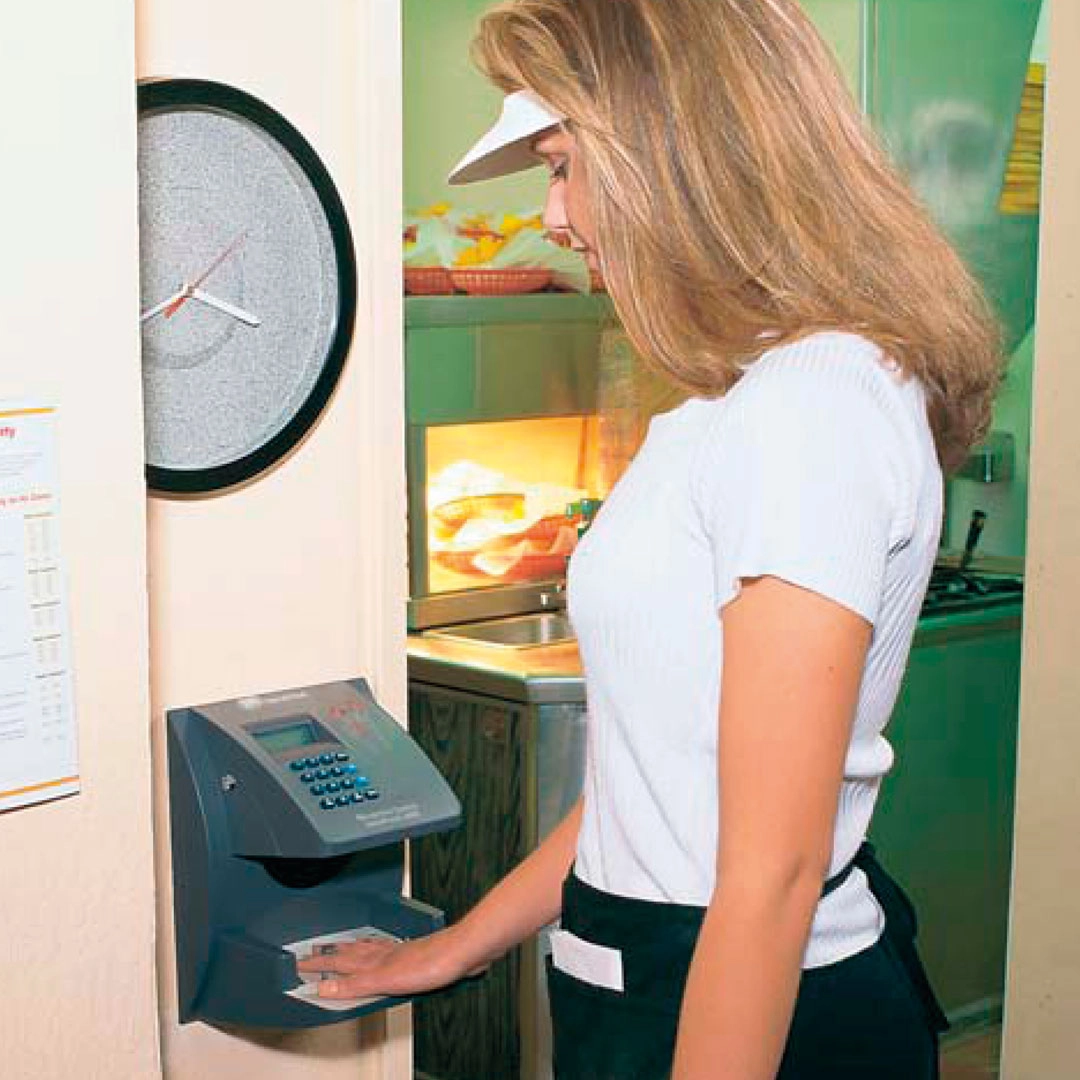

Using a hand scanner terminal

Hand geometry technology in the hand scanner terminal

The HSCAN3000 uses field-proven hand geometry biometric technology. The terminal captures a three-dimensional image of the hand each time the employee punches. The hand’s size and shape are used to verify their identity with unparalleled accuracy. No fingerprints or palm prints are utilised. Green and red lights notify the employee of the status of each punch. There’s no question anymore; employees have to be there to punch.

Communication options

The HSCAN3000, designed for larger networked installations, allows multiple units to be connected at a site via Ethernet 10 Base-T (TCP/IP).

Bell schedules

The bell schedule lets you program the day, time, and duration of a series of bells. The bells can be programmed to signal the beginning or end of a shift, lunch, or break.

Door control

The HSCAN3000 Hand Scanner Terminal provides the capability to unlock and monitor a door. Global time zones may be used to restrict employee access.

Product Details

Technical Specifications

Size

8.85 in (22.3 cm) wide
11.65 in (29.6 cm) high
8.55 in (21.7 cm) deep

Weight

6 lbs (2.7 kg)

Power

12 to 24 VDC or 12 to 24 VAC 50-60 Hz, 7 watts

Temperature Range

14°F to 140°F (-10°C to 60°C) non-operating/storage
32°F to 113°F (0°C to 45°C) operating

Relative Humidity:
(non-condensing)

5% to 85% non-operating/storage
20% to 80% operating

Verification Time

Less than one second

Memory Retention

Up to 5 years via the standard internal lithium battery.

Transaction Storage

5120 transactions

ID Number Length

1 to 10 digits from keypad or card

User Capacity

512 users expandable to 32,512 users

Template Size

9 bytes

Communications

Ethernet 10 Base-T (TCP/IP)

Baud Rate

300 to 28.8 Kbps

Card Reader Input

Proximity, Wiegand, Magnetic Stripe, Bar Code
(5 VDC provided by HandReader)

Card Reader Output

Wiegand, Magnetic Stripe, Bar Code

Duress Code

1 leading digit (user definable)

Door Controls

Bell Ring output, Door Switch input, Door Lock output.
(open collector, 5 VDC present, sinks to ground, 100 mA max)

Time Zones

62 user definable time zones

Options

BB-200 Operational Battery Backup
BC-100 Bar Code Reader Wall Mount
DC-102 Data Converter (RS-232 to RS-485)
EM-801 Memory Expansion – 9,728 users
EM-803 Memory Expansion – 32,512 users
EN-200 Ethernet Communications Module
MD-500 High Speed Internal Modem
